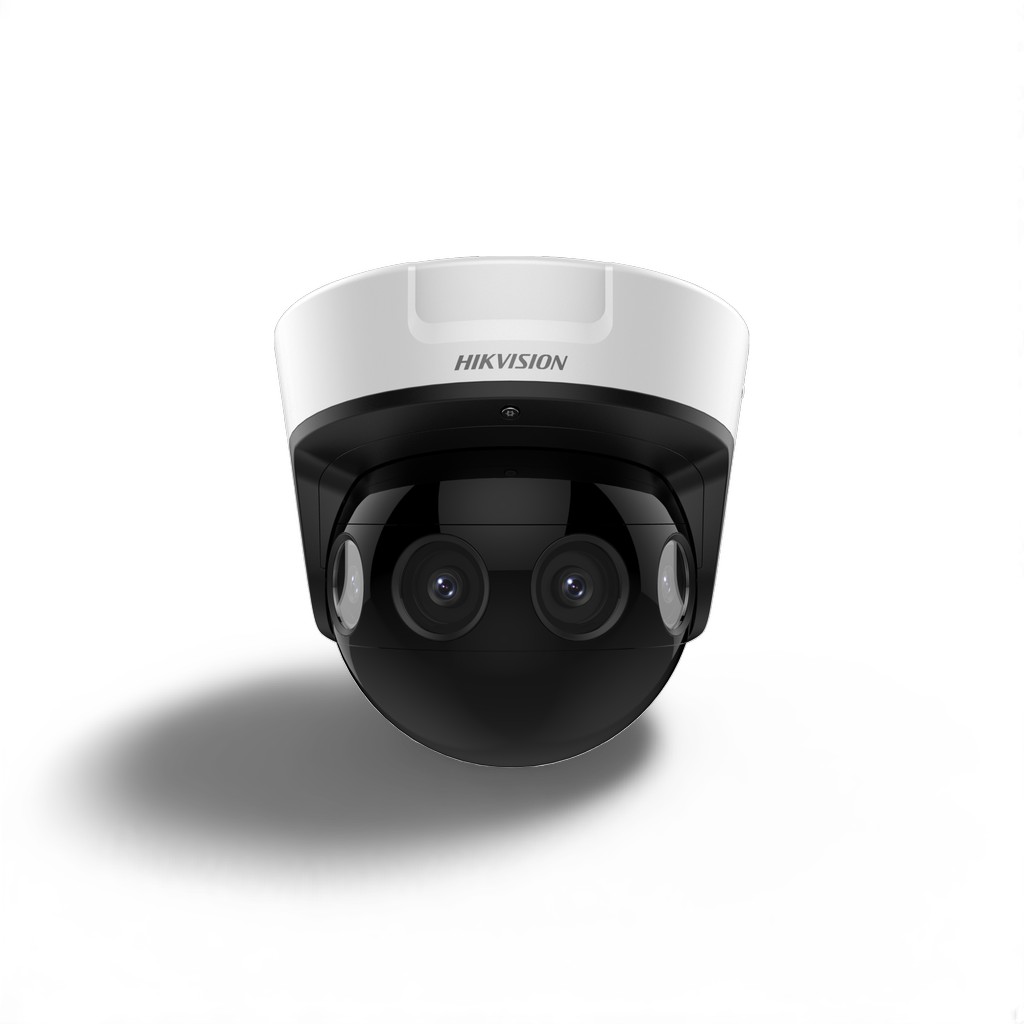

32 MP 180° PanoVu Network Camera
- 180° splicing image: the image presented includes the full panoramic view covered by the camera
- A built-in heater provides ultra-low temperature start-up to -40℃
- IP67/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
- High resolution 32 MP: capturing clear images, and allowing for more details to be displayed on a video wall
- DarkFighter technology captures high quality color images even in dimly light environments
- Camera
- Image Sensor1/8" Progressive Scan CMOS
- Max. Resolution8160 × 3616
- Min. Illumination
Color: 0.009 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.4, AGC ON),
B/W: 0.0009 Lux @ (F1.2, AGC ON), 0.0012 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Shutter Time1/25 s – 1/100,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°
- Lens
- Focal Length & FOV2.8 mm, four lenses, single lens image: horizontal FOV 102°, vertical FOV 55°, diagonal FOV 120°, Panorama Image: horizontal FOV 180°, vertical FOV 95°
- Lens MountM12
- ApertureF1.4
- Illuminator
- Supplement Light TypeFour IR LEDs
- Supplement Light RangeUp to 20 m
- IR Wavelength850 nm
- Video
- Main Stream
Panorama:
50 Hz: 25 fps (8160 × 3616, 8160 × 2304)
60 Hz: 30 fps (8160 × 3616, 8160 × 2304)
Original:
50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Panorama + ePTZ:
Panorama channel
50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
ePTZ channel
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Divided panorama:
50 Hz: 25 fps (2032 × 3616)
60 Hz: 30 fps (2032 × 3616)
- Video CompressionMain stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- Network StorageMicro SD/SDHC/SDXC card (128 G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200
- Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Image
- Image SettingsRotate (only the original mode supports), saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (with –S model)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, 3D DNR, HLC, defog, EIS (only the original mode supports)
- Interface
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port,-S: 1 RS-485
- On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Audio
1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm2 Inputs, 2 outputs (max. 12 VDC, 1 A)
- Reset KeyYes
- Event
- Basic EventNetwork disconnected, IP address conflict, illegal login, HDD full, HDD error
- General
- Power
Non-AC: 12 VDC±20%, 1.4 A, max. 17 W, three-core terminal block,
PoE (802.3at, class 4, 42.5 V to 57V), max. 23 W
-AC: 24 VAC±20%, 1.2 A, 50Hz, three-core terminal block,
PoE (802.3at, class 4, 42.5 V to 57 V), max. 23 W
- MaterialAluminum alloy & plastic
- Dimension190 × 207 × 208 mm (7.5" × 8.2" × 8.2")
- Package Dimension336 × 261 × 293 mm (13.2" × 10.3" × 11.5")
- Approx. 3.5 kg (7.7 lb.)
- Startup And Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
- General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter (only the original mode supports)
- Approval
- ProtectionIP67, IK10
