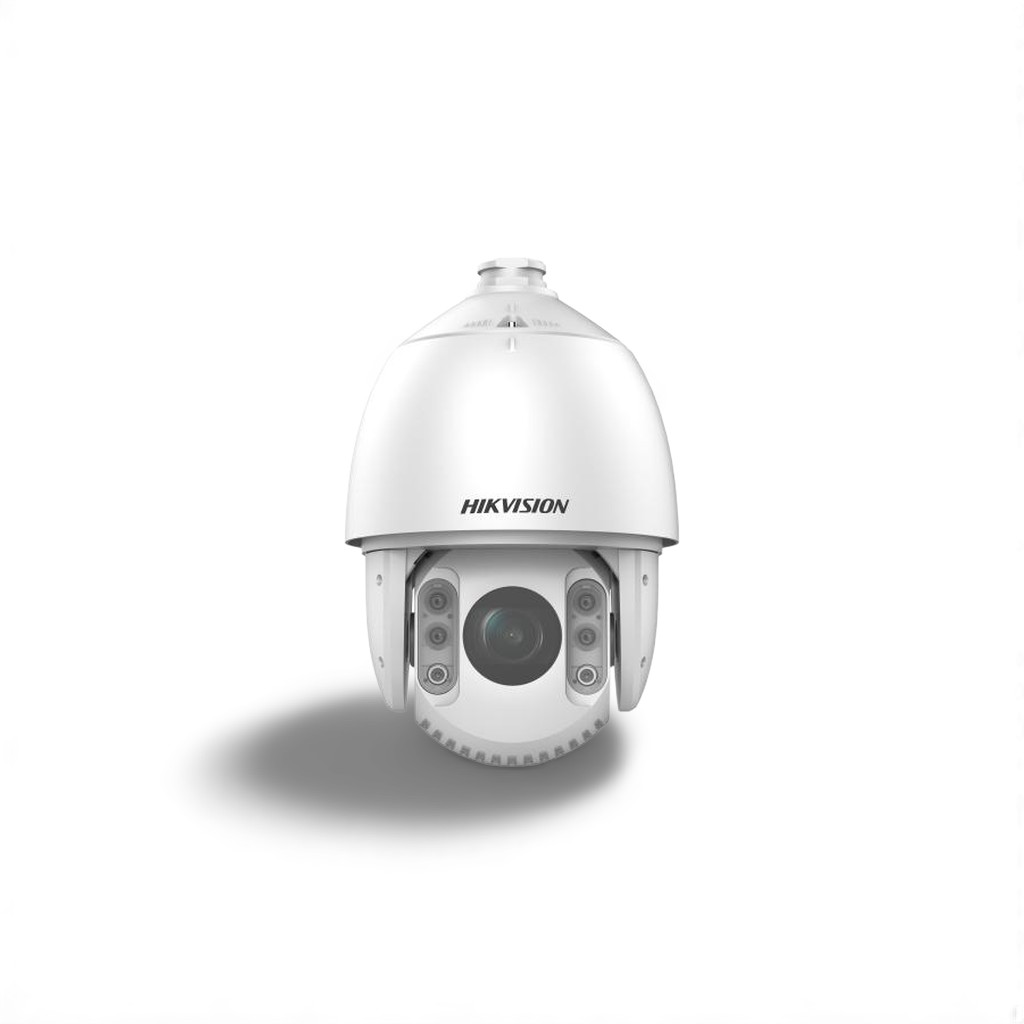

Hikvision IP speed dome camera DS-2DE7232IW-AE(S5), 2MP, 32x zoom, 200m IR,

7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

• 1/2.8" Progressive Scan CMOS
• High quality imaging with 2 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• 32× optical zoom, 16× digital zoom
• WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
• Up to 200 m IR distance
• Accurate human and vehicle target classification, alarm, and linked tracking based on deep learning algorithm
• Face capture: Up to 5 faces captured at the same time
• • Camera
  • Image Sensor1/2.8＂ progressive scan CMOS
  • Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.2，AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON)
  • Shutter Speed1/1s-1/30000s
  • Slow Shutteryes
  • Focussemi-auto;manual;auto
  • Day & NightICR
  • Day/Night Switchday, night, auto, scheduled-switch
  • BLCyes
  • WDR120 dB WDR
  • HLCyes
  • 3D DNRyes
  • Defogyes
  • EISyes
  • Regional Exposureyes
  • Regional Focusyes
  • Image Settingssaturation;brightness;contrast;sharpness
  • White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB;Locked WB
  • Digital Zoom16x
  • Optical Zoom32x
  • Privacy Maskup to 24 masks;mosaic mask ;mask color configurable;polygon region
  • SNR＞52dB

  • Lens
  • Focal Length4.8 mm to 153 mm, 32× Optical
  • Zoom Speedapprox.4.2s
  • FOV

    Horizontal field of view: 58.4° to 2.14° (wide-tele),

    Vertical field of view: 33.8° to 1.2° (wide-tele),

    Diagonal field of view: 65.6° to 2.46° (wide-tele)

  • ApertureF1.2

  • Illuminator
  • IR Distance200 m

  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Zoomyes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Power-Off Memoryyes
  • Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output

  • Video
  • Max. Resolution1920 × 1080
  • Stream Typemain stream;sub-stream;third stream
  • Main Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288);

    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video CompressionH.265;H.264;MJPEG
  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 Type;;;baseline profile;main profile;high profile
  • H.265 Type;main profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROI;dynamic face tracking;;fixed region;main stream, sub-stream and third stream respectively support eight fixed areas

  • Audio
  • Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
  • Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
  • Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filteringyes

  • Smart Features
  • Face Captureyes
  • Basic Eventaudio exception;motion detection;alarm input;alarm output;video tampering alarm;exception
  • Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
  • Smart Trackingmanual tracking;event tracking;auto-tracking
  • Smart RecordANR;Dual-VCA
  • Alarm Linkagesmart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP

  • Network
  • Network StorageNAS (NFS, SMB/ CIFS);;ANR
  • ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
  • APIISAPI;Hikvision SDK;Hik-Connect;ONVIF (Profile S, Profile G, Profile T);ISUP
  • Simultaneous Live View20
  • User/Host32
  • Smooth Streamingyes
  • Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
  • ClientiVMS-4200;Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

  • Interface
  • Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • On-Board Storagesupport microSD/microSDHC/microSDXC cards;up to 256 GB
  • Alarm Input2 alarm inputs
  • Alarm Output1 alarm output
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω

  • General
  • Power24 VAC, Hi-PoE
  • Power Consumption And CurrentMax. 42 W, including max. 10 W for heater and max. 18 W for supplement light
  • Operating Conditionshumidity lower than 90%RH ;temperature: -30℃ to 65℃ (-22°F to 149°F)
  • Resetyes
  • DemistDemist by heating the glass
  • MaterialADC 12, PC, PC+10%GF
  • DimensionsΦ 220 mm × 353.4 mm (Φ 8.66" × 13.91")
  • Approx. 5 kg (11.02 lb.)

  • Approval
  • ProtectionIP66 Standard, IK10 (excluding glass window) , 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
