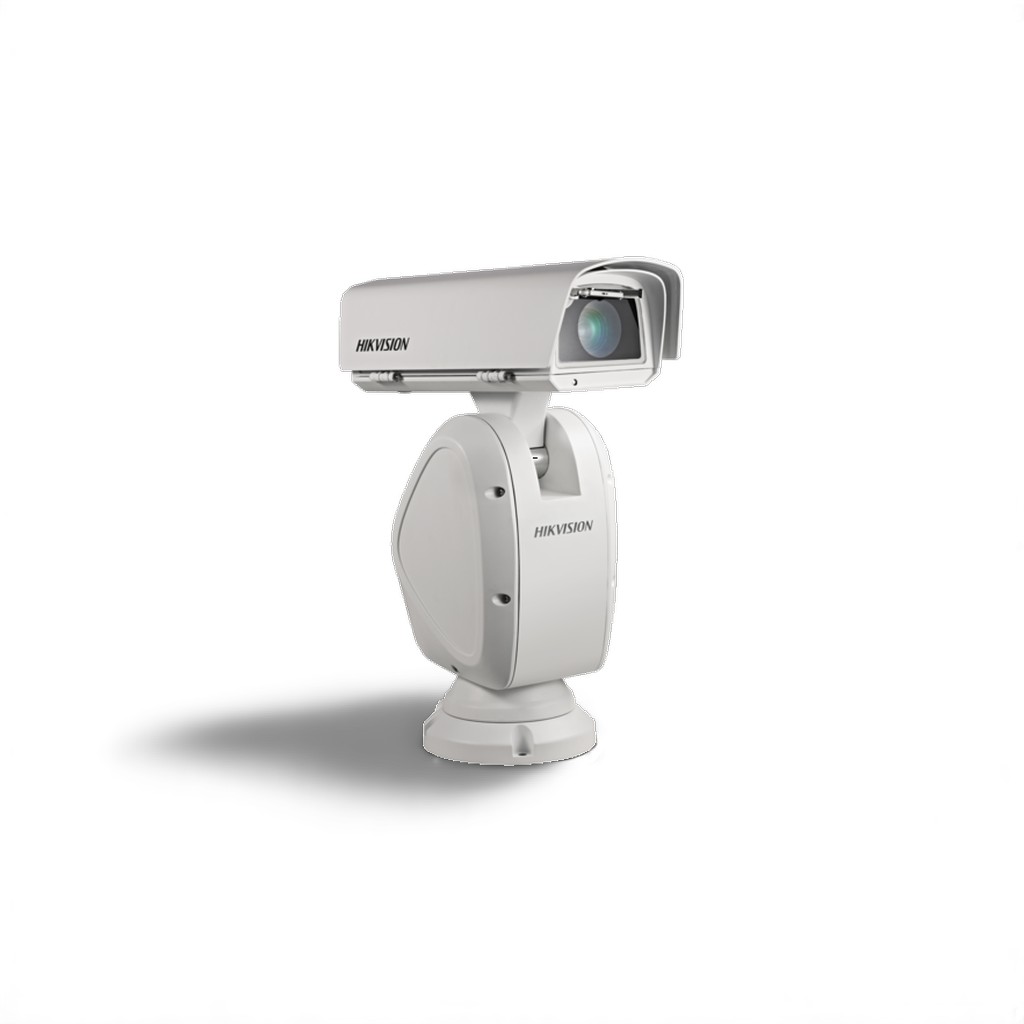

מצלמה ממונעת Hikvision DS-2DY9250X-A(T5) 2 Megapixel Network IP Outdoor PTZ Camera, 50X Lens

9-inch 2 MP 50X Powered by DarkFighter Network Positioning System

• 1/1.8" progressive scan CMOS
• Up to 1920 × 1080 resolution
• Min. illumination:Color: 0.005 Lux @(F1.2, AGC ON) ,B/W: 0.001 Lux @(F1.2, AGC ON)
• Rain-sensing auto wiper
• 50× optical zoom, 16×digital zoom
• 140dB WDR, 3D DNR, HLC, BLC, Smart IR
• 24 VAC
• Support H.265+/H.265 video compression
• • Camera
  • Image Sensor1/1.8＂ progressive scan CMOS
  • Min. Illuminationcolor: 0.005Lux @ (F1.2，AGC ON);B/W: [email protected](F1.2，AGC ON)
  • Shutter Speed1/1s ~ 1/30,000s
  • Focusauto;semi-auto;manual
  • Day & NightICR
  • BLCyes
  • WDR140 dB WDR
  • HLCyes
  • 3D DNRyes
  • EISYes. Built-in gyroscope to improve EIS performance.
  • Regional Exposureyes
  • Regional Focusyes
  • White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
  • Digital Zoom16x
  • Optical Zoom50x
  • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • General Functionmirror, password protection, watermark, IP address filter

  • Lens
  • Focal Length6.0 mm to 300 mm, 50 × Optical
  • Zoom Speedapprox. 6.3 s
  • FOV

    Horizontal field of view: 56.6° to 1.4°(wide-tele)

    Vertical field of view: 33.7° to 0.9° (wide-tele),

    Diagonal field of view: 63.4° to 1.6° (wide-tele)

  • ApertureF1.2

  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)+40° to -90°
  • Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
  • Proportional Zoomyes
  • Presets300
  • Patrol Scan8 patrols
  • Pattern Scan4 pattern scans
  • Power-Off Memoryyes
  • Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

  • Video
  • Max. Resolution1920 × 1080
  • Main Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

    60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video CompressionH.265;H.264;MJPEG
  • H.264 Typebaseline profile;main profile;high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROIyes

  • Audio
  • Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

  • Smart Features
  • Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
  • Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
  • Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
  • Smart Trackingmanual tracking;event tracking
  • Smart RecordANR;Dual-VCA
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen-ended API; ISAPI;Hikvision SDK;Third-party management platform;Hik-Connect;ISUP;Open Network Video Interface
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect;HikCentral Pro
  • Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

  • Interface
  • Communication Interface1 RJ45 10 M/100 M Ethernet Interface
  • On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input7 alarm inputs
  • Alarm Output2 alarm outputs
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω
  • Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
  • RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

  • General
  • Vandal-Proof Alarmyes
  • Power24 VAC. Max. 90 W, including max. 15W for heater
  • Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
  • WiperYes. Rain-sensing auto control
  • MaterialAluminum alloy ADC12
  • Dimensions180 mm × 390 mm × 491 mm (7.09" × 15.35" × 19.33")
  • Approx. 13 kg (28.66 lb)
  • Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Approval
  • ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
