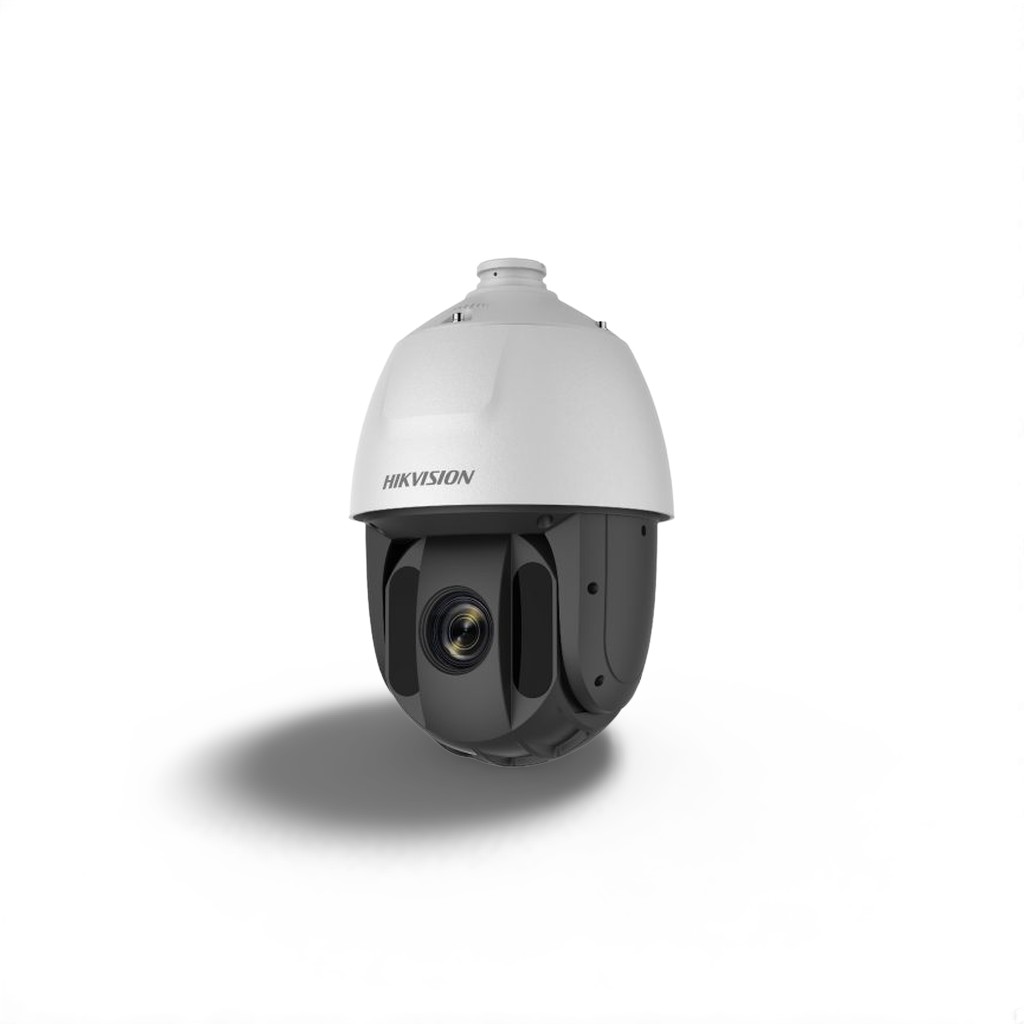

5-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome
- Accurate human and vehicle target classification and alarm based on deep learning algorithm
- Support face capture. Up to 5 faces captured at the same time
- 1/2.8" Progressive Scan CMOS
- Up to 1920 × [email protected] resolution
- Min. illumination: Color: 0.005 Lux @ (F1.6，AGC ON), B/W: 0.001 Lux @(F1.6，AGC ON), 0 Lux with IR
- 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus
- Up to 150m IR distance
- 24 VAC & Hi-PoE
- Support H.265+/H.265 video compression
- Camera
- Image Sensor1/2.8＂ progressive scan CMOS
- Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON)
- Shutter Speed1/1 s to 1/30000 s
- Slow Shutteryes
- Focus;semi-auto;manual;auto
- Day & NightICR
- Day/Night Switchday, night, auto, scheduled-switch
- BLCyes
- WDR120 dB WDR
- HLCyes
- 3D DNRyes
- Defogyes
- EISyes
- Regional Exposureyes
- Regional Focusyes
- Image Settingsbrightness;contrast;sharpness;saturation
- White Balanceauto;ATW;sodium lamp;indoor;fluorescent lamp;outdoor;MWB;Locked WB;Locked WB
- Digital Zoom16x
- Optical Zoom25x
- Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
- SNR＞52dB
- Lens
- Focal Length4.8 mm to 120 mm, 25× Optical
- Zoom Speedapprox. 3.6 s
- FOV
Horizontal field of view: 57.6° to 2.5° (wide-tele),
Vertical field of view: 34.4° to 1.4° (wide-tele),
Diagonal field of view: 64.5° to 2.9° (wide-tele)
- ApertureF1.6
- Illuminator
- IR Distance150 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
- Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Zoomyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-Off Memoryyes
- Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskpreset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output
- Video
- Max. Resolution1920 × 1080
- Stream Typemain stream;sub-stream;third stream
- Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 35 2× 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265;H.264;MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Type;;;baseline profile;main profile;high profile
- H.265 Type;main profile
- H.264+yes
- H.265+yes
- SVCyes
- ROIdynamic face tracking;;fixed region;main stream, sub-stream and third stream respectively support eight fixed areas
- Audio
- Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filteringyes
- Smart Features
- Face Captureyes
- Basic Eventaudio exception;motion detection;video tampering alarm;exception
- Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
- Smart RecordANR;Dual-VCA
- Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP
- Network
- Network StorageNAS (NFS, SMB/ CIFS);ANR
- ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
- APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP;Hik-Connect
- Simultaneous Live View20
- User/Host32
- Smooth Streamingyes
- Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- ClientiVMS-4200;Hik-Connect
- Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
- Interface
- Communication Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port
- On-Board Storageup to 256 GB ; support microSD/microSDHC/microSDXC cards
- Alarm Input2 alarm inputs
- Alarm Output1 alarm output
- Audio Input;1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
- General
- Power24 VAC, Hi-PoE
- Power Consumption And CurrentMax. 30 W, including max. 10 W for IR
- Operating Conditionshumidity lower than 90%RH ;temperature: -30℃ to 65℃ (-22°F to 149°F)
- Resetyes
- MaterialADC 12, PC, PC+10% GF
- DimensionsΦ 208 mm × 345 mm (Φ 8.19" × 13.58")
- Approx. 3.3 kg (7.28 lb)
- Approval
- ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
