DS-PDPG12P-EG2-WB
NEW

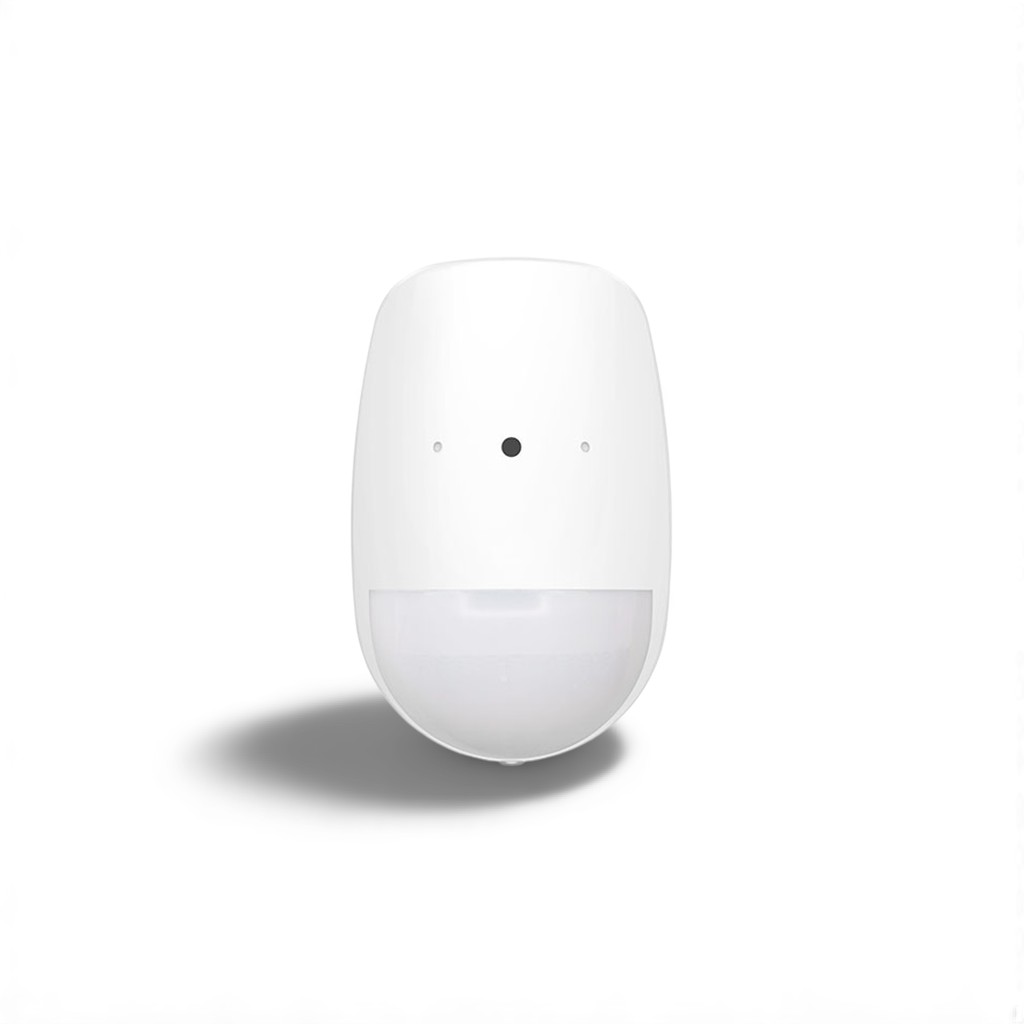

Wireless PIR-Glass Break Detector
- PIR Detection Range: 12m / 85.9°
- Glass Break Range: 8m / 120°
- Up to 30KG pet immunity
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
Especificación
- Detection Performance
- Detection MethodPassive Infrared;Acoustic Sensor
- Rango De Detección12m
- Detection Angle85.9°
- Detection Zones52
- Detectable Speed0.3～2m/s
- Inmunidad A Mascotas30Kg
- White Light Filter6500lux
- PIR SensitivityAuto,High,Pet
- Glass Break Range8m
- Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
- Glass Thickness2.4mm to 6.4mm
- Glass Break Sensitivity2m,4m,6m,8m
- Digital Temperature CompensationSupport
- Glass Size0.3m x 0.3m to 3m x 3m
- Creep Zone ProtectionSupport
- Característica
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Environment Temperature IndicatorSupport
- Signal Strength IndicatorSupport
- Interfaz
- Interruptor De AlimentaciónPower Up Enrolling
- Indicador LEDGreen(PIR),Red(BG),Blue(alarm)
- Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Frecuencia De Transmisión433MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
- Electrical Characteristics
- Standard Battery Life
4 years in work status (being triggered 20 times per day)
- Fuente De AlimentaciónBattery Powered
- Tipo De BateríaCR123A × 2
- Typical Voltage3V
- General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Temperatura De Almacenamiento-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)65.5mm×103mm×48.5mm
- 134g
- Mounting Height1.8 to 2.4m
- Mounting MethodWall
- Escenarios De AplicaciónIndoor
- SoporteOptional Wall & Ceiling Accessory
